Collaboration&Instances

Propriétaire : Méta-modèle UML simplifié

Collaboration ModelElement Interaction Operation NameSpace Binding DataFlow Generalization InterfaceRealization CollaborationUse Instance Classifier ModelTree

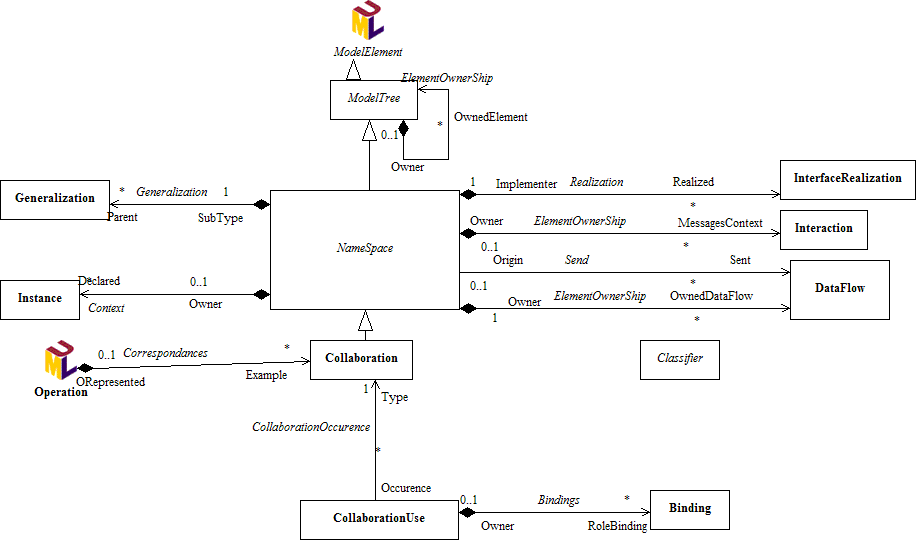

Diagramme de classes : Collaboration&Instances

An instance belongs to a NameSpace. In the case when a NameSpace is a collaboration, the instance is considered as being a “Part". NameSpaces can have collaborations, notably Packages and classifiers. Operations can also have collaborations.
