StateModel

Propriétaire : Méta-modèle UML simplifié

Kind StateMachine ModelElement State Event StateVertex InternalTransition PseudoState Transition Behavior Class Package UseCase Signal

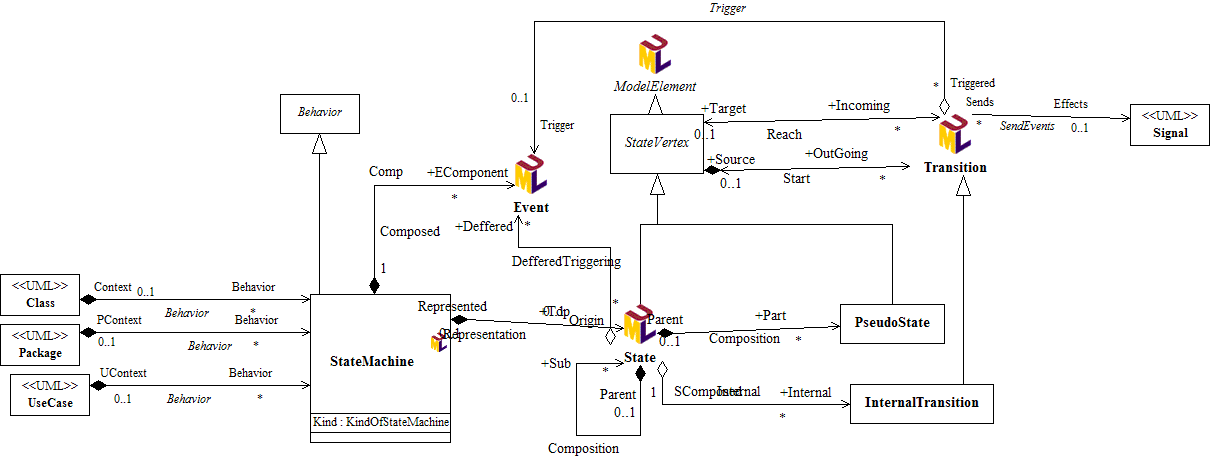

Diagramme de classes : StateModel

The State model is organized around StateMachines and States. Transitions and Events are the two other important concepts. StateMachines are mainly defined at Class level, but can also exist at Package, UseCase, Collaboration and Operation level, where they mainly correspond to activity diagrams.
