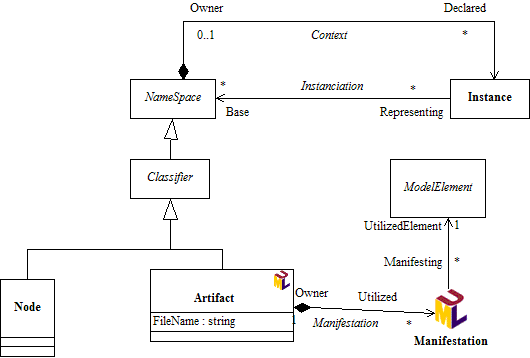

Diagramme de classes : DeploymentModeling
Nodes and Artifact are the two main notions used for deployment modeling. Under Objecteering, deploying an artifact to a node, having embedded nodes, having structured Artifact, is modeled using the “internalStructure" mechanisms. Deploying an Artifact to a Node is made by having a part in the node which is typed by the Artifact. Artifacts correspond to the manifestation of several model elements. DeploymentSpecification is always attached to an artifact or (rarely) to a Node. This is done by specifying Stereotypes subclassing the predefined “DeploymentSpecification" one.
